I was recently introduced to AdGuard Home by way of its very slick Home Assistant Add-On. Compared to the relatively-complicated Pi-hole setup that I had implemented several months back, AdGuard Home was much simpler to deploy (particularly since I basically just had to click the “Install” button from the Home Assistant add-ons manage). It also has a more modern UI with options arranged more logically (to me, at least), and it just feels easier to use overall. It worked great for a time… until my Home Assistant instance crashed, taking down AdGuard Home (and my internet access) with it. Maybe bundling these services isn’t the best move.
I’d like to use AdGuard Home, but the system it runs on needs to be rock-solid. With that in mind, I thought it might be fun to instead run AdGuard Home in a Docker container on a VM running VMware’s container-optimized Photon OS, primarily because I want an excuse to play more with Docker and Photon (but also the thing I just mentioned about stability). So here’s what it took to get that running.
First, up: getting Photon. There are a variety of delivery formats available here, and I opted for the HW13 OVA version. I copied that download URL:

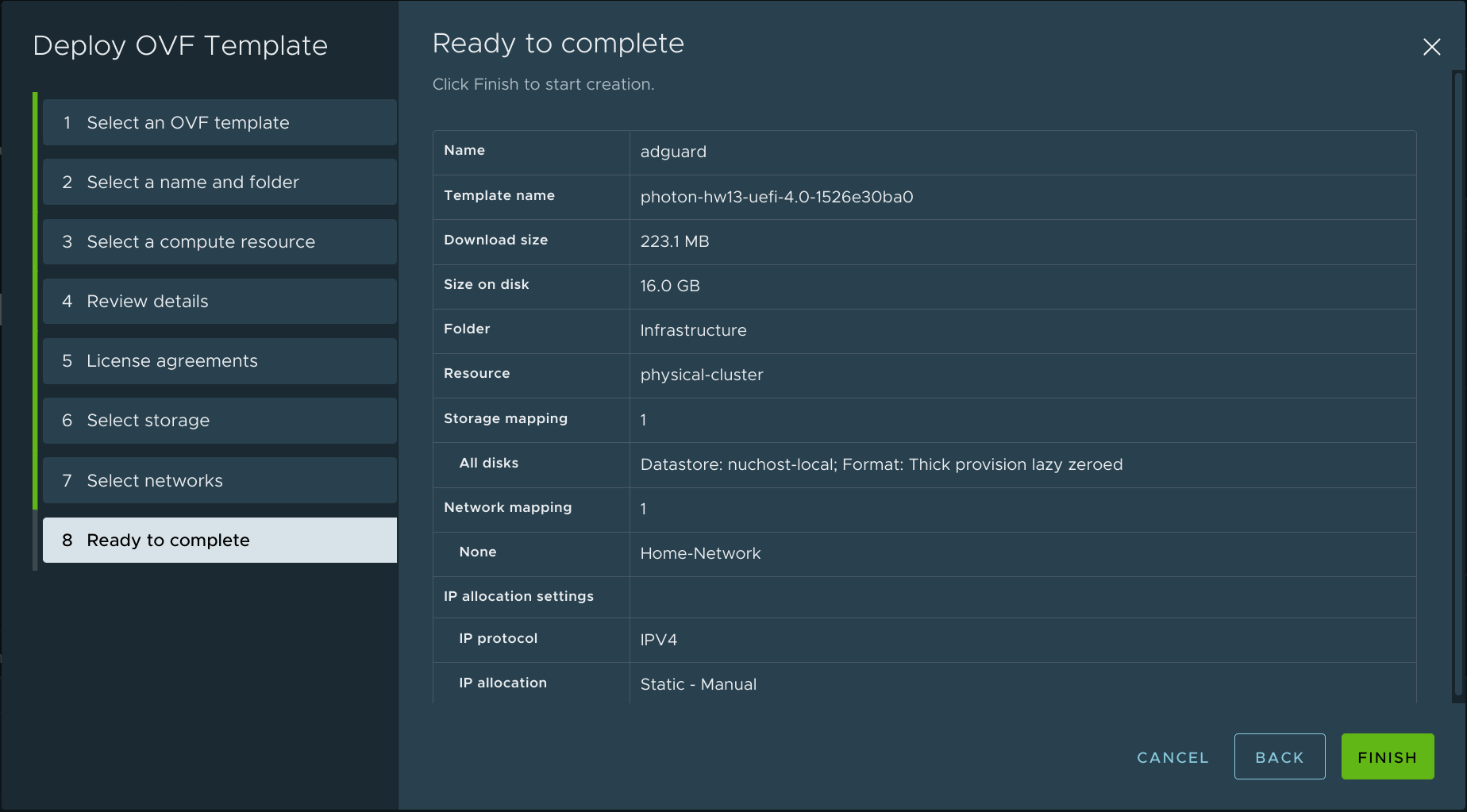

Then I went into vCenter, hit the Deploy OVF Template option, and pasted in the URL: This lets me skip the kind of tedious “download file from internet and then upload file to vCenter” dance, and I can then proceed to click through the rest of the deployment options.
Once the VM is created, I power it on and hop into the web console. The default root username is
changeme, and I’ll of course be forced to change that the first time I log in.
My next step was to configure a static IP address by creating
/etc/systemd/network/10-static-en.network and entering the following contents:
[Match] Name=eth0 [Network] Address=192.168.1.2/24 Gateway=192.168.1.1 DNS=192.168.1.5
By the way, that
192.168.1.5 address is my Windows DC/DNS server that I use for my homelab environment. That’s the DNS server that’s configured on my Google Wifi router, and it will continue to handle resolution for local addresses.
I also disabled DHCP by setting
[Match] Name=e* [Network] DHCP=no IPv6AcceptRA=no
I set the required permissions on my new network configuration file with
chmod 644 /etc/systemd/network/10-static-en.network and then restarted
systemctl restart systemd-networkd.

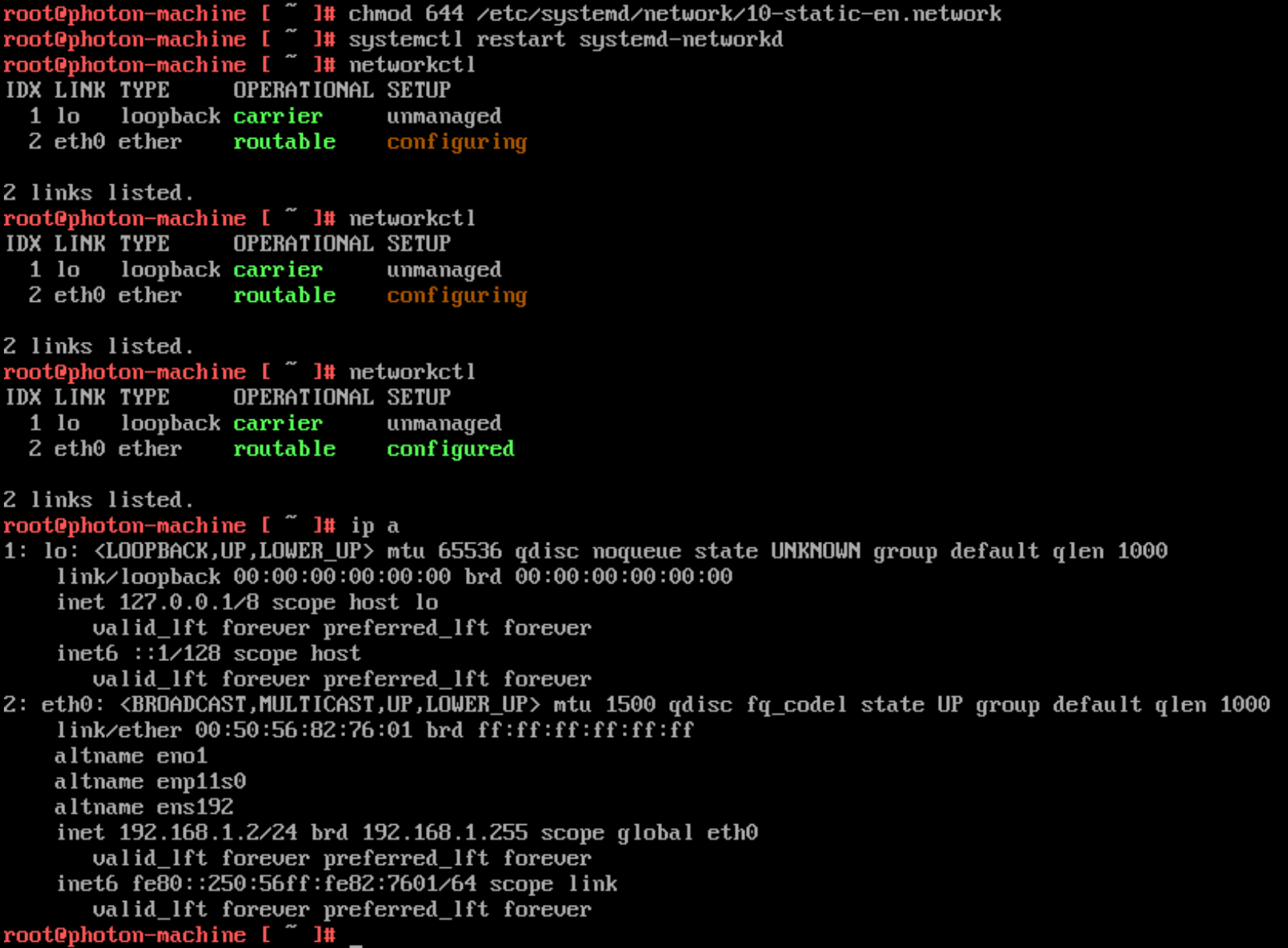

I then ran
networkctl a couple of times until the
eth0 interface went fully green, and did an
ip a to confirm that the address had been applied.
One last little bit of housekeeping is to change the hostname with
hostnamectl set-hostname adguard and then reboot for good measure. I can then log in via SSH to continue the setup.
Now that I’m in, I run
tdnf update to make sure the VM is fully up to date.
Photon OS ships with Docker preinstalled, but I need to install
docker-compose on my own to simplify container deployment. Per the install instructions, I run:
curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose chmod +x /usr/local/bin/docker-compose
And then verify that it works:
root@adguard [ ~]# docker-compose --version docker-compose version 1.29.2, build 5becea4c
I’ll also want to enable and start Docker:
systemctl enable docker systemctl start docker
By default, the
resolved daemon is listening on
127.0.0.53:53 and will prevent docker from binding to that port. Fortunately it’s pretty easy to disable the
DNSStubListener and free up the port:
sed -r -i.orig 's/#?DNSStubListener=yes/DNSStubListener=no/g' /etc/systemd/resolved.conf rm /etc/resolv.conf && ln -s /run/systemd/resolve/resolv.conf /etc/resolv.conf systemctl restart systemd-resolved
Deploy AdGuard Home container
Okay, now for the fun part.
I create a directory for AdGuard to live in, and then create a
mkdir ~/adguard cd ~/adguard vi docker-compose.yaml
And I define the container:
version: "3" services: adguard: container_name: adguard restart: unless-stopped image: adguard/adguardhome:latest ports: - "53:53/tcp" - "53:53/udp" - "67:67/udp" - "68:68/tcp" - "68:68/udp" - "80:80/tcp" - "443:443/tcp" - "853:853/tcp" - "3000:3000/tcp" volumes: - './workdir:/opt/adguardhome/work' - './confdir:/opt/adguardhome/conf' cap_add: - NET_ADMIN
Then I can fire it up with
docker-compose up --detach:
root@adguard [ ~/adguard ]# docker-compose up --detach Creating network "adguard_default" with the default driver Pulling adguard (adguard/adguardhome:latest)... latest: Pulling from adguard/adguardhome 339de151aab4: Pull complete 4db4be09618a: Pull complete 7e918e810e4e: Pull complete bfad96428d01: Pull complete Digest: sha256:de7d791b814560663fe95f9812fca2d6dd9d6507e4b1b29926cc7b4a08a676ad Status: Downloaded newer image for adguard/adguardhome:latest Creating adguard ... done
Next, I point a web browser to
http://adguard.lab.bowdre.net:3000 to perform the initial (minimal) setup:
Once that’s done, I can log in to the dashboard at
AdGuard Home ships with pretty sensible defaults so there’s not really a huge need to actually do a lot of configuration. Any changes that I do do will be saved in
~/adguard/confdir/AdGuardHome.yaml so they will be preserved across container changes.
Getting requests to AdGuard Home
Normally, you’d tell your Wifi router what DNS server you want to use, and it would relay that information to the connected DHCP clients. Google Wifi is a bit funny, in that it wants to function as a DNS proxy for the network. When you configure a custom DNS server for Google Wifi, it still tells the DHCP clients to send the requests to the router, and the router then forwards the queries on to the configured DNS server.
I already have Google Wifi set up to use my Windows DC (at
192.168.1.5) for DNS. That lets me easily access systems on my internal
lab.bowdre.net domain without having to manually configure DNS, and the DC forwards resolution requests it can’t handle on to the upstream (internet) DNS servers.
To easily insert my AdGuard Home instance into the flow, I pop in to my Windows DC and configure the AdGuard Home address (
192.168.1.2) as the primary DNS forwarder. The DC will continue to handle internal resolutions, and anything it can’t handle will now get passed up the chain to AdGuard Home. And this also gives me a bit of a failsafe, in that queries will fail back to the previously-configured upstream DNS if AdGuard Home doesn’t respond within a few seconds.
Chaining my DNS configurations in this way (router -> DC -> AdGuard Home -> internet) does have a bit of a limitation, in that all queries will appear to come from the Windows server: I won’t be able to do any per-client filtering as a result, but honestly I’m okay with that as I already use the “Pause Internet” option in Google Wifi to block outbound traffic from certain devices anyway. And using the Windows DNS as an intermediary makes it significantly quicker and easier to switch things up if I run into problems later; changing the forwarder here takes effect instantly rather than having to manually update all of my clients or wait for DHCP to distribute the change.
I have worked around this in the past by bypassing Google Wifi’s DHCP but I think it was actually more trouble than it was worth to me.
One last thing…
I’m putting a lot of responsibility on both of these VMs, my Windows DC and my new AdGuard Home instance. If they aren’t up, I won’t have internet access, and that would be a shame. I already have my ESXi host configured to automatically start up when power is (re)applied, so I also adjust the VM Startup/Shutdown Configuration so that AdGuard Home will automatically boot after ESXi is loaded, followed closely by the Windows DC (and the rest of my virtualized infrastructure):
So there you have it. Simple DNS-based ad-blocking running on a minimal container-optimized VM that should be more stable than the add-on tacked on to my Home Assistant instance. Enjoy!
