Thus far in my vRealize Automation project, I’ve primarily been handing the payload over to vRealize Orchestrator to do the heavy lifting on the back end. This approach works really well for complex multi-part workflows (like when generating unique hostnames), but it may be overkill for more linear tasks (such as just running some simple commands inside of a deployed guest OS). In this post, I’ll explore how I use vRA Action Based eXtensibility (ABX) to do just that.

The Goal

My ABX action is going to use PowerCLI to perform a few steps inside a deployed guest OS (Windows-only for this demonstration):

  1. Auto-update VM tools (if needed).
  2. Add specified domain users/groups to the local Administrators group.
  3. Extend the C: volume to fill the VMDK.
  4. Set up Windows Firewall to enable remote access.
  5. Create a scheduled task to attempt to automatically apply any available Windows updates.

Template Changes

Cloud Assembly

I’ll need to start by updating the cloud template so that the requester can input an (optional) list of admin accounts to be added to the VM, and to enable specifying a disk size to override the default from the source VM template.

I will also add some properties to tell PowerCLI (and the Invoke-VmScript cmdlet in particular) how to connect to the VM.

Inputs section

I’ll kick this off by going into Cloud Assembly and editing the WindowsDemo template I’ve been working on for the past few eons. I’ll add a diskSize input:

formatVersion: 1
  site: [...]
  image: [...]
  size: [...]
    title: 'System drive size'
    default: 60
    type: integer
    minimum: 60
    maximum: 200
  network: [...]
  adJoin: [...]

The default value is set to 60GB to match the VMDK attached to the source template; that’s also the minimum value since shrinking disks gets messy.

I’ll also drop in an adminsList input at the bottom of the section:

  poc_email: [...]
  ticket: [...]
    type: string
    title: Administrators
    description: Comma-separated list of domain accounts/groups which need admin access to this server.
    default: ''
Resources section

In the Resources section of the cloud template, I’m going to add a few properties that will tell the ABX script how to connect to the appropriate vCenter and then the VM.

  • vCenter: The vCenter server where the VM will be deployed, and thus the server which PowerCLI will authenticate against. In this case, I’ve only got one vCenter, but a larger environment might have multiples. Defining this in the cloud template makes it easy to select automagically if needed. (For instance, if I had a bow-vcsa and a dre-vcsa for my different sites, I could do something like vCenter: '${input.site}-vcsa.lab.bowdre.net' here.)
  • vCenterUser: The username with rights to the VM in vCenter. Again, this doesn’t have to be a static assignment.
  • templateUser: This is the account that will be used by Invoke-VmScript to log in to the guest OS. My template will use the default Administrator account for non-domain systems, but the lab\vra service account on domain-joined systems (using the adJoin input I set up earlier).

I’ll also include the adminsList input from earlier so that can get passed to ABX as well. And I’m going to add in an adJoin property (mapped to the existing input.adJoin) so that I’ll have that to work with later.

    type: Cloud.vSphere.Machine
      image: '${input.image}'
      flavor: '${input.size}'
      site: '${input.site}'
      vCenter: vcsa.lab.bowdre.net
      vCenterUser: vra@lab.bowdre.net
      templateUser: '${input.adJoin ? "vra@lab" : "Administrator"}'
      adminsList: '${input.adminsList}'
      environment: '${input.environment}'
      function: '${input.function}'
      app: '${input.app}'
      adJoin: '${input.adJoin}'
      ignoreActiveDirectory: '${!input.adJoin}'

And I will add in a storage property as well which will automatically adjust the deployed VMDK size to match the specified input:

      description: '${input.description}'
      networks: [...]
      constraints: [...]
        bootDiskCapacityInGB: '${input.diskSize}'
    type: Cloud.vSphere.Network
    properties: [...]
Complete template

Okay, all together now:

formatVersion: 1
    type: string
    title: Site
      - BOW
      - DRE
    type: string
    title: Operating System
      - title: Windows Server 2019
        const: ws2019
    default: ws2019
    title: Resource Size
    type: string
      - title: 'Micro [1vCPU|1GB]'
        const: micro
      - title: 'Tiny [1vCPU|2GB]'
        const: tiny
      - title: 'Small [2vCPU|2GB]'
        const: small
    default: small
    title: 'System drive size'
    default: 60
    type: integer
    minimum: 60
    maximum: 200
    title: Network
    type: string
    title: Join to AD domain
    type: boolean
    default: true
    title: Create static DNS record
    type: boolean
    default: false
    type: string
    title: Environment
      - title: Development
        const: D
      - title: Testing
        const: T
      - title: Production
        const: P
    default: D
    type: string
    title: Function Code
      - title: Application (APP)
        const: APP
      - title: Desktop (DSK)
        const: DSK
      - title: Network (NET)
        const: NET
      - title: Service (SVS)
        const: SVS
      - title: Testing (TST)
        const: TST
    default: TST
    type: string
    title: Application Code
    minLength: 3
    maxLength: 3
    default: xxx
    type: string
    title: Description
    description: Server function/purpose
    default: Testing and evaluation
    type: string
    title: Point of Contact Name
    default: Jack Shephard
    type: string
    title: Point of Contact Email
    default: jack.shephard@virtuallypotato.com
    pattern: '^[^\s@]+@[^\s@]+\.[^\s@]+$'
    type: string
    title: Ticket/Request Number
    default: 4815162342
    type: string
    title: Administrators
    description: Comma-separated list of domain accounts/groups which need admin access to this server.
    default: ''
    type: Cloud.vSphere.Machine
      image: '${input.image}'
      flavor: '${input.size}'
      site: '${input.site}'
      vCenter: vcsa.lab.bowdre.net
      vCenterUser: vra@lab.bowdre.net
      templateUser: '${input.adJoin ? "vra@lab" : "Administrator"}'
      adminsList: '${input.adminsList}'
      environment: '${input.environment}'
      function: '${input.function}'
      app: '${input.app}'
      adJoin: '${input.adJoin}'
      ignoreActiveDirectory: '${!input.adJoin}'
        relativeDN: '${"OU=Servers,OU=Computers,OU=" + input.site + ",OU=LAB"}'
      customizationSpec: '${input.adJoin ? "vra-win-domain" : "vra-win-workgroup"}'
      staticDns: '${input.staticDns}'
      dnsDomain: lab.bowdre.net
      poc: '${input.poc_name + " (" + input.poc_email + ")"}'
      ticket: '${input.ticket}'
      description: '${input.description}'
        - network: '${resource.Cloud_vSphere_Network_1.id}'
          assignment: static
        - tag: 'comp:${to_lower(input.site)}'
        bootDiskCapacityInGB: '${input.diskSize}'
    type: Cloud.vSphere.Network
      networkType: existing
        - tag: 'net:${input.network}'

With the template sorted, I need to assign it a new version and release it to the catalog so that the changes will be visible to Service Broker: Releasing a new version of a Cloud Assembly template

Service Broker custom form

I now need to also make some updates to the custom form configuration in Service Broker so that the new fields will appear on the request form. First things first, though: after switching to the Service Broker UI, I go to Content & Policies > Content Sources, open the linked content source, and click the Save & Import button to force Service Broker to pull in the latest versions from Cloud Assembly.

I can then go to Content, click the three-dot menu next to my WindowsDemo item, and select the Customize Form option. I drag-and-drop the System drive size from the Schema Elements section onto the canvas, placing it directly below the existing Resource Size field. Placing the system drive size field on the canvas

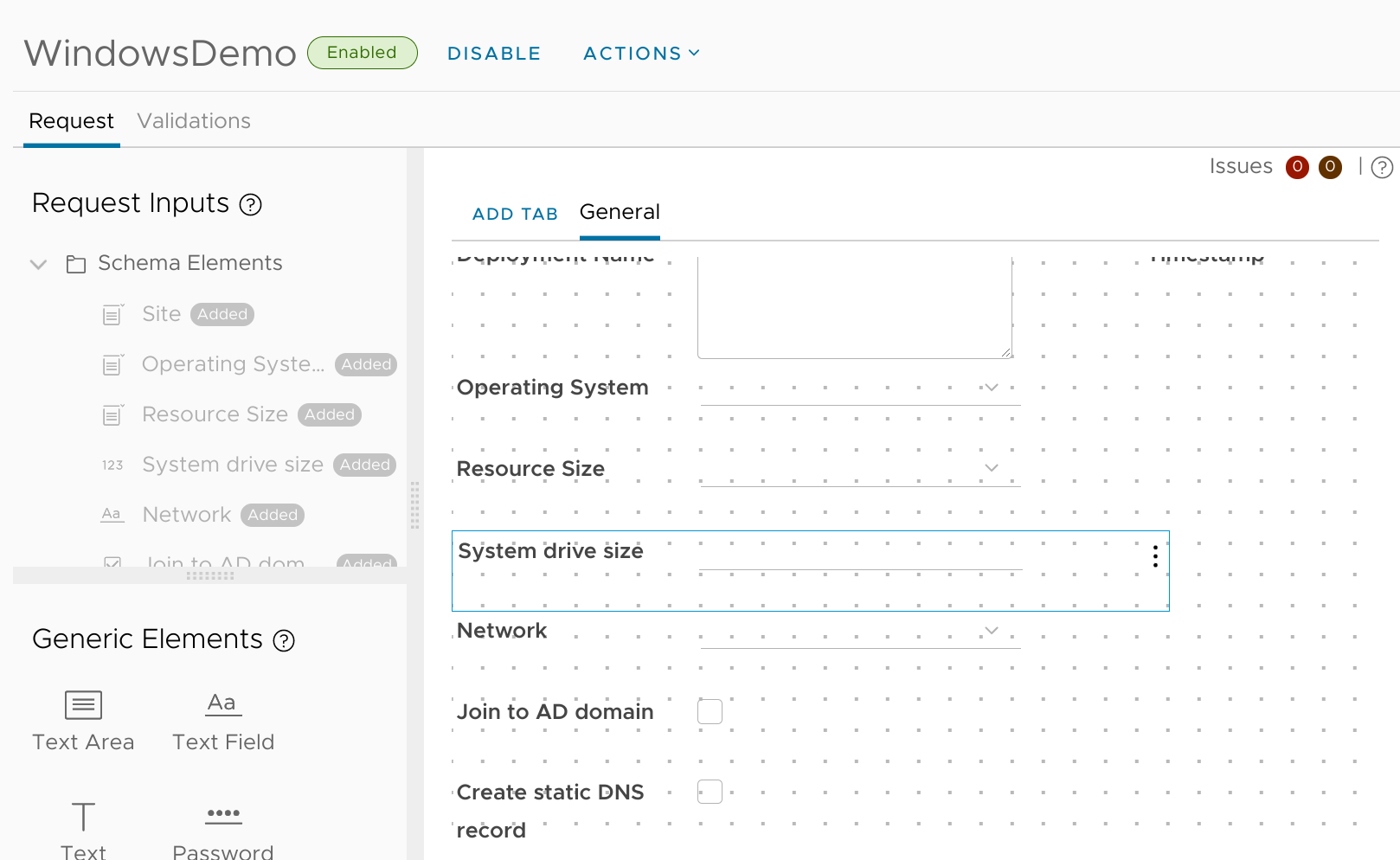

With the field selected, I use the Properties section to edit the label with a unit so that users will better understand what they’re requesting. System drive size label

On the Values tab, I change the Step option to 5 so that we won’t wind up with users requesting a disk size of 62.357 GB or anything crazy like that. System drive size step

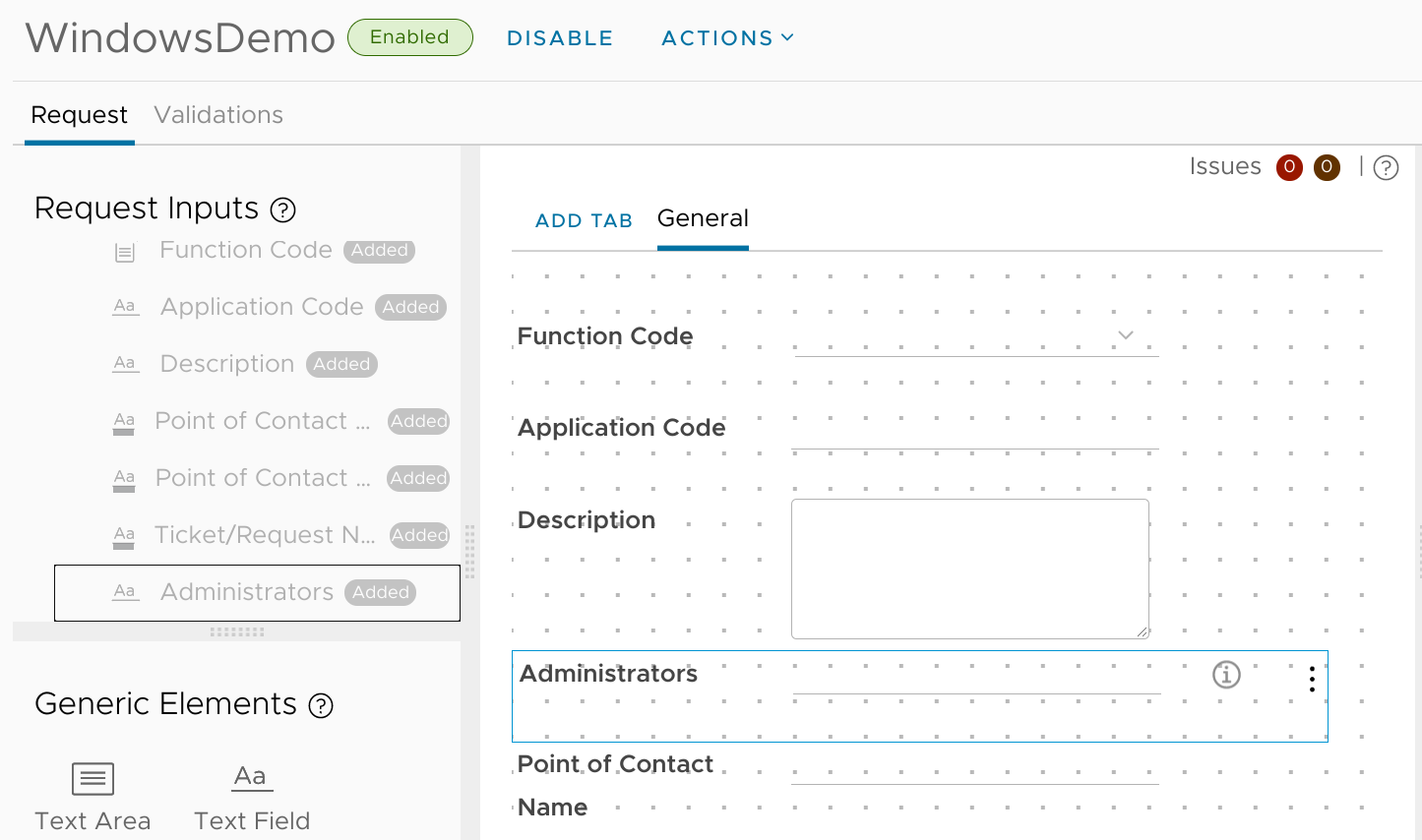

I’ll drag-and-drop the Administrators field to the canvas, and put it right below the VM description: Administrators field placement

I only want this field to be visible if the VM is going to be joined to the AD domain, so I’ll set the Visibility accordingly: Administrators field visibility

That should be everything I need to add to the custom form so I’ll be sure to hit that big Save button before moving on.


Okay, now it’s time to actually make the stuff work on the back end. But before I get to writing the actual script, there’s something else I’ll need to do first. Remember how I added properties to store the usernames for vCenter and the VM template in the cloud template? My ABX action will also need to know the passwords for those accounts. I didn’t add those to the cloud template since anything added as a property there (even if flagged as a secret!) would be visible in plain text to any external handlers (like vRO). Instead, I’ll store those passwords as encrypted Action Constants.

Action Constants

From the vRA Cloud Assembly interface, I’ll navigate to Extensibility > Library > Actions and then click the Action Constants button up top. I can then click New Action Constant and start creating the ones I need:

  • vCenterPassword: for logging into vCenter.
  • templatePassWinWorkgroup: for logging into non-domain VMs.
  • templatePassWinDomain: for logging into VMs with the designated domain credentials.

I’ll make sure to enable the Encrypt the action constant value toggle for each so they’ll be protected. Creating an action constant

Created action constants

Once all those constants are created I can move on to the meat of this little project:

ABX Action

I’ll click back to Extensibility > Library > Actions and then + New Action. I give the new action a clever title and description: Create a new action]

I then hit the language dropdown near the top left and select to use powershell so that I can use those sweet, sweet PowerCLI cmdlets. Language selection

And I’ll pop over to the right side to map the Action Constants I created earlier so that I can reference them in the script I’m about to write: Mapping constants in action

Now for The Script:

<# vRA 8.x ABX action to perform certain in-guest actions post-deploy:
        - auto-update VM tools
        - add specified domain users/groups to local Administrators group
        - extend C: volume to fill disk
        - set up remote access
        - create a scheduled task to (attempt to) apply Windows updates
    ## Action Secrets:
        templatePassWinDomain                   # password for domain account with admin rights to the template (domain-joined deployments)
        templatePassWinWorkgroup                # password for local account with admin rights to the template (standalone deployments)
        vCenterPassword                         # password for vCenter account passed from the cloud template
    ## Action Inputs:
    ## Inputs from deployment:
        resourceNames[0]                        # VM name [BOW-DVRT-XXX003]
        customProperties.vCenterUser            # user for connecting to vCenter [lab\vra]
        customProperties.vCenter                # vCenter instance to connect to [vcsa.lab.bowdre.net]
        customProperties.dnsDomain              # long-form domain name [lab.bowdre.net]
        customProperties.adminsList             # list of domain users/groups to be added as local admins [john, lab\vra, vRA-Admins]
        customProperties.adJoin                 # boolean to determine if the system will be joined to AD (true) or not (false)
        customProperties.templateUser           # username used for connecting to the VM through vmtools [Administrator] / [root]

function handler($context, $inputs) {
    # Initialize global variables
    $vcUser = $inputs.customProperties.vCenterUser
    $vcPassword = $context.getSecret($inputs."vCenterPassword")
    $vCenter = $inputs.customProperties.vCenter
    # Create vmtools connection to the VM
    $vmName = $inputs.resourceNames[0]
    Connect-ViServer -Server $vCenter -User $vcUser -Password $vcPassword -Force
    $vm = Get-VM -Name $vmName
    Write-Host "Waiting for VM Tools to start..."
    if (-not (Wait-Tools -VM $vm -TimeoutSeconds 180)) {
        Write-Error "Unable to establish connection with VM tools" -ErrorAction Stop
    # Detect OS type
    $count = 0
    While (!$osType) {
        Try {
            $osType = ($vm | Get-View).Guest.GuestFamily.ToString()
            $toolsStatus = ($vm | Get-View).Guest.ToolsStatus.ToString()
        } Catch {
            # 60s timeout
            if ($count -ge 12) {
                Write-Error "Timeout exceeded while waiting for tools." -ErrorAction Stop
            Write-Host "Waiting for tools..."
            Sleep 5
    Write-Host "$vmName is a $osType and its tools status is $toolsStatus."
    # Update tools on Windows if out of date
    if ($osType.Equals("windowsGuest") -And $toolsStatus.Equals("toolsOld")) {
        Write-Host "Updating VM Tools..."
        Update-Tools $vm
        Write-Host "Waiting for VM Tools to start..."
        if (-not (Wait-Tools -VM $vm -TimeoutSeconds 180)) {
            Write-Error "Unable to establish connection with VM tools" -ErrorAction Stop
    # Run OS-specific tasks
    if ($osType.Equals("windowsGuest")) {
        # Initialize Windows variables
        $domainLong = $inputs.customProperties.dnsDomain
        $adminsList = $inputs.customProperties.adminsList
        $adJoin = $inputs.customProperties.adJoin
        $templateUser = $inputs.customProperties.templateUser
        $templatePassword = $adJoin.Equals("true") ? $context.getSecret($inputs."templatePassWinDomain") : $context.getSecret($inputs."templatePassWinWorkgroup")
        # Add domain accounts to local administrators group
        if ($adminsList.Length -gt 0 -And $adJoin.Equals("true")) {
            # Standardize users entered without domain as DOMAIN\username
            if ($adminsList.Length -gt 0) {
                $domainShort = $domainLong.split('.')[0]
                $adminsArray = @(($adminsList -Split ',').Trim())
                For ($i=0; $i -lt $adminsArray.Length; $i++) {
                    If ($adminsArray[$i] -notmatch "$domainShort.*\\" -And $adminsArray[$i] -notmatch "@$domainShort") {
                        $adminsArray[$i] = $domainShort + "\" + $adminsArray[$i]
            $admins = '"{0}"' -f ($adminsArray -join '","')
            Write-Host "Administrators: $admins"
            $adminScript = "Add-LocalGroupMember -Group Administrators -Member $admins"
            Start-Sleep -s 10
            Write-Host "Attempting to add administrator accounts..."
            $runAdminScript = Invoke-VMScript -VM $vm -ScriptText $adminScript -GuestUser $templateUser -GuestPassword $templatePassword
            if ($runAdminScript.ScriptOutput.Length -eq 0) {
                Write-Host "Successfully added [$admins] to Administrators group."
            } else {
                Write-Host "Attempt to add [$admins] to Administrators group completed with warnings:`n" $runAdminScript.ScriptOutput "`n"
        } else {
            Write-Host "No admins to add..."
        # Extend C: volume to fill system drive
        $partitionScript = "`$Partition = Get-Volume -DriveLetter C | Get-Partition; `$Partition | Resize-Partition -Size (`$Partition | Get-PartitionSupportedSize).sizeMax"
        Start-Sleep -s 10
        Write-Host "Attempting to extend system volume..."
        $runPartitionScript = Invoke-VMScript -VM $vm -ScriptText $partitionScript -GuestUser $templateUser -GuestPassword $templatePassword
        if ($runPartitionScript.ScriptOutput.Length -eq 0) {
            Write-Host "Successfully extended system partition."
        } else {
            Write-Host "Attempt to extend system volume completed with warnings:`n" $runPartitionScript.ScriptOutput "`n"
        # Set up remote access
        $remoteScript = "Enable-NetFirewallRule -DisplayGroup `"Remote Desktop`"
            Enable-NetFirewallRule -DisplayGroup `"Windows Management Instrumentation (WMI)`"
            Enable-NetFirewallRule -DisplayGroup `"File and Printer Sharing`"
            Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -name `"fDenyTSConnections`" -Value 0"
        Start-Sleep -s 10
        Write-Host "Attempting to enable remote access (RDP, WMI, File and Printer Sharing, PSRemoting)..."
        $runRemoteScript = Invoke-VMScript -VM $vm -ScriptText $remoteScript -GuestUser $templateUser -GuestPassword $templatePassword
        if ($runRemoteScript.ScriptOutput.Length -eq 0) {
            Write-Host "Successfully enabled remote access."
        } else {
            Write-Host "Attempt to enable remote access completed with warnings:`n" $runRemoteScript.ScriptOutput "`n"
        # Create scheduled task to apply updates
        $updateScript = "`$action = New-ScheduledTaskAction -Execute 'C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe' -Argument '-NoProfile -WindowStyle Hidden -Command `"& {Install-WUUpdates -Updates (Start-WUScan)}`"'
            `$trigger = New-ScheduledTaskTrigger -Once -At ([DateTime]::Now.AddMinutes(1))
            `$settings = New-ScheduledTaskSettingsSet -Compatibility Win8 -Hidden
            Register-ScheduledTask -Action `$action -Trigger `$trigger -Settings `$settings -TaskName `"Initial_Updates`" -User `"NT AUTHORITY\SYSTEM`" -RunLevel Highest
            `$task = Get-ScheduledTask -TaskName `"Initial_Updates`"
            `$task.Triggers[0].StartBoundary = [DateTime]::Now.AddMinutes(1).ToString(`"yyyy-MM-dd'T'HH:mm:ss`")
            `$task.Triggers[0].EndBoundary = [DateTime]::Now.AddHours(3).ToString(`"yyyy-MM-dd'T'HH:mm:ss`")
            `$task.Settings.AllowHardTerminate = `$True
            `$task.Settings.DeleteExpiredTaskAfter = 'PT0S'
            `$task.Settings.ExecutionTimeLimit = 'PT2H'
            `$task.Settings.Volatile = `$False
            `$task | Set-ScheduledTask"
        Start-Sleep -s 10
        Write-Host "Creating a scheduled task to apply updates..."
        $runUpdateScript = Invoke-VMScript -VM $vm -ScriptText $updateScript -GuestUser $templateUser -GuestPassword $templatePassword
        Write-Host "Created task:`n" $runUpdateScript.ScriptOutput "`n"
    } elseif ($osType.Equals("linuxGuest")) {
        Write-Host "Linux systems not supported by this action... yet"
    # Cleanup connection
    Disconnect-ViServer -Server $vCenter -Force -Confirm:$false


I like to think that it’s fairly well documented (but I’ve also been staring at / tweaking this for a while); here’s the gist of what it’s doing:

  1. Capture vCenter login credentials from the Action Constants and the customProperties of the deployment (from the cloud template).
  2. Use those creds to Connect-ViServer to the vCenter instance.
  3. Find the VM object which matches the resourceName from the vRA deployment.
  4. Wait for VM tools to be running and accessible on that VM.
  5. Determine the OS type of the VM (Windows/Linux).
  6. If it’s Windows and the tools are out of date, update them and wait for the reboot to complete.
  7. If it’s Windows, move on:
  8. If it needs to add accounts to the Administrators group, assemble the needed script and run it in the guest via Invoke-VmScript.
  9. Assemble a script to expand the C: volume to fill whatever size VMDK is attached as HDD1, and run it in the guest via Invoke-VmScript.
  10. Assemble a script to set common firewall exceptions for remote access, and run it in the guest via Invoke-VmScript.
  11. Assemble a script to schedule a task to (attempt to) apply Windows updates, and run it in the guest via Invoke-VmScript.

It wouldn’t be hard to customize the script to perform different actions (or even run against Linux systems - just set $whateverScript = "apt update && apt upgrade" (or whatever) and call it with $runWhateverScript = Invoke-VMScript -VM $vm -ScriptText $whateverScript -GuestUser $templateUser -GuestPassword $templatePassword), but this is as far as I’m going to take it for this demo.

Event subscription

Before I can test the new action, I’ll need to first add an extensibility subscription so that the ABX action will get called during the deployment. So I head to Extensibility > Subscriptions and click the New Subscription button. Extensibility subscriptions

I’ll be using this to call my new configureGuest action - so I’ll name the subscription Configure Guest. I tie it to the Compute Post Provision event, and bind my action: Creating the new subscription

I do have another subsciption on that event already, VM Post-Provisioning which is used to modify the VM object with notes and custom attributes. I’d like to make sure that my work inside the guest happens after that other subscription is completed, so I’ll enable blocking and give it a priority of 2: Adding blocking to Configure Guest

After hitting the Save button, I go back to that other VM Post-Provisioning subscription, set it to enable blocking, and give it a priority of 1: Blocking VM Post-Provisioning

This will ensure that the new subscription fires after the older one completes, and that should avoid any conflicts between the two.


Alright, now let’s see if it worked. I head into Service Broker to submit the deployment request: Submitting the test deployment

Note that I’ve set the disk size to 65GB (up from the default of 60), and I’m adding lab\testy as a local admin on the deployed system.

Once the deployment finishes, I can switch back to Cloud Assembly and check Extensibility > Activity > Action Runs and then click on the configureGuest run to see how it did. Successful action run

It worked!

The Log tab lets me see the progress as the execution progresses:

Logging in to server.
logged in to server vcsa.lab.bowdre.net:443
Read-only file system
09/03/2021 19:08:27	Get-VM	Finished execution
09/03/2021 19:08:27	Get-VM
Waiting for VM Tools to start...
09/03/2021 19:08:29	Wait-Tools	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:08:29	Wait-Tools	Finished execution
09/03/2021 19:08:29	Wait-Tools
09/03/2021 19:08:29	Get-View	Finished execution
09/03/2021 19:08:29	Get-View
09/03/2021 19:08:29	Get-View	Finished execution
09/03/2021 19:08:29	Get-View
BOW-PSVS-XXX001 is a windowsGuest and its tools status is toolsOld.
Updating VM Tools...
09/03/2021 19:08:30	Update-Tools	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:08:30	Update-Tools	Finished execution
09/03/2021 19:08:30	Update-Tools
Waiting for VM Tools to start...
09/03/2021 19:09:00	Wait-Tools	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:09:00	Wait-Tools	Finished execution
09/03/2021 19:09:00	Wait-Tools
Administrators: "lab\testy"
Attempting to add administrator accounts...
09/03/2021 19:09:10	Invoke-VMScript	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:09:10	Invoke-VMScript	Finished execution
09/03/2021 19:09:10	Invoke-VMScript
Successfully added ["lab\testy"] to Administrators group.
Attempting to extend system volume...
09/03/2021 19:09:27	Invoke-VMScript	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:09:27	Invoke-VMScript	Finished execution
09/03/2021 19:09:27	Invoke-VMScript
Successfully extended system partition.
Attempting to enable remote access (RDP, WMI, File and Printer Sharing, PSRemoting)...
09/03/2021 19:09:49	Invoke-VMScript	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:09:49	Invoke-VMScript	Finished execution
09/03/2021 19:09:49	Invoke-VMScript
Successfully enabled remote access.
Creating a scheduled task to apply updates...
09/03/2021 19:10:12	Invoke-VMScript	5222b516-ae2c-5740-2926-77cd21441f27
09/03/2021 19:10:12	Invoke-VMScript	Finished execution
09/03/2021 19:10:12	Invoke-VMScript
Created task:
TaskPath                                       TaskName                          State
--------                                       --------                          -----
\                                              Initial_Updates                   Ready
\                                              Initial_Updates                   Ready

So it claims to have successfully updated the VM tools, added lab\testy to the local Administrators group, extended the C: volume to fill the 65GB virtual disk, added firewall rules to permit remote access, and created a scheduled task to apply updates. I can open a console session to the VM to spot-check the results. Verifying local admins Yep, testy is an admin now!

Verify disk size And C: fills the disk!


This is really just the start of what I’ve been able to do in-guest leveraging Invoke-VmScript from an ABX action. I’ve got a slightly-larger version of this script which also performs similar actions in Linux guests as well. And I’ve also cobbled together ABX solutions for generating randomized passwords for local accounts and storing them in an organization’s password management solution. I would like to get around to documenting those here in the future… we’ll see.

In any case, hopefully this information might help someone else to get started down this path. I’d love to see whatever enhancements you are able to come up with!

Leave a comment
